C++ Insights Tool

C++ Insights is an open-source tool that transforms C++ source code into a representation closer to what compiler sees and generates. It helps understand the underlying details of C++.

1. Introduction

Online version: https://cppinsights.io/

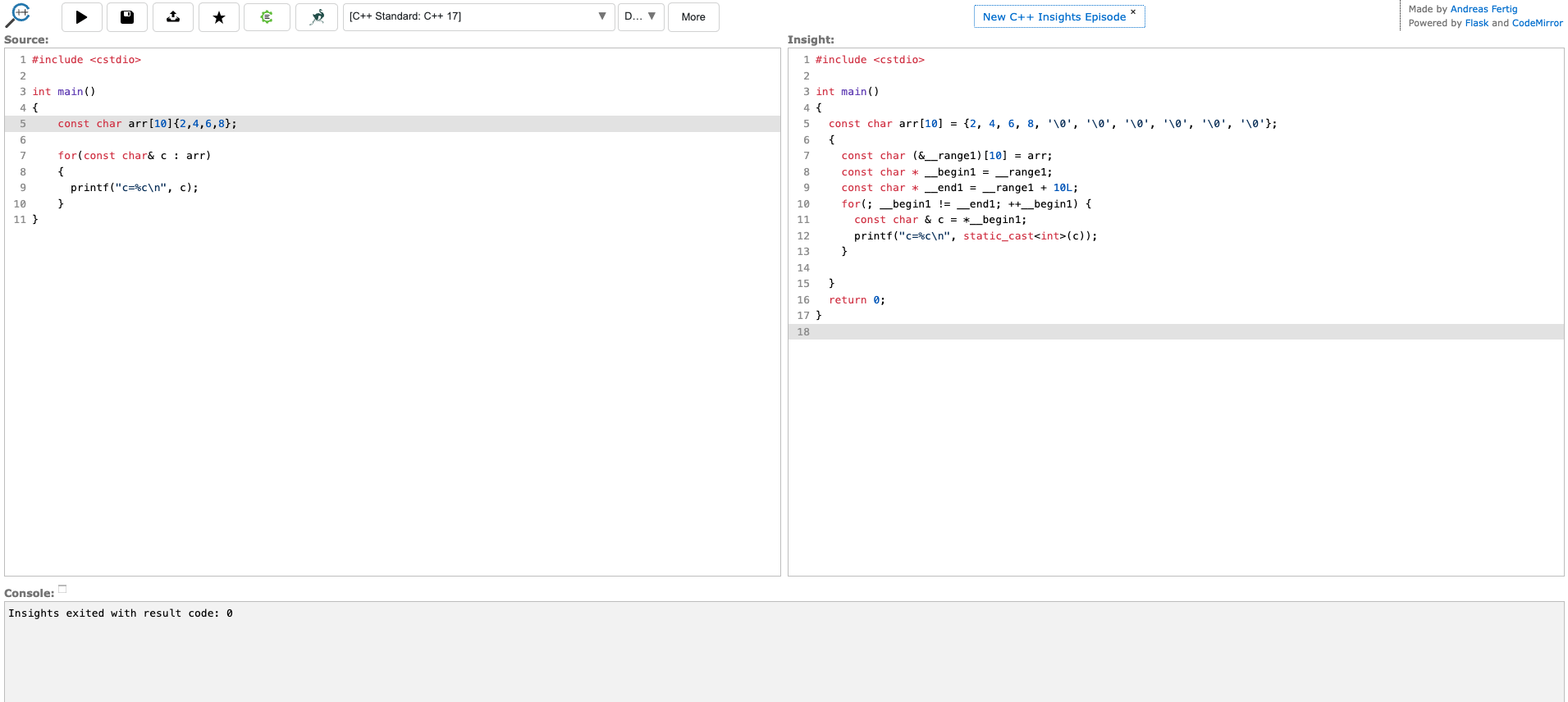

A binary release is available, allowing you to install the tool on your local machine. Upon opening it in the browser, a default example is displayed, demonstrating its capabilities. The left pane shows the input C++ source code, while the right pane presents the translated version enriched with additional information.

2. Translating range-based for loop

before.cpp

int main() {
    std::vector<int> numbers = {1, 2, 3, 4, 5};
    for (int num : numbers) {
        std::cout << num << " ";
    }
    return 0;
}

after.cpp

int main(){

  std::vector<int, std::allocator<int> > numbers = std::vector<int, std::allocator<int> >{std::initializer_list<int>{1, 2, 3, 4, 5}, std::allocator<int>()};
  {
    std::vector<int, std::allocator<int> > & __range1 = numbers;
    __gnu_cxx::__normal_iterator<int *, std::vector<int, std::allocator<int> > > __begin1 = __range1.begin();
    __gnu_cxx::__normal_iterator<int *, std::vector<int, std::allocator<int> > > __end1 = __range1.end();
    for(; __gnu_cxx::operator!=(__begin1, __end1); __begin1.operator++()) {
      int num = __begin1.operator*();
      std::operator<<(std::cout.operator<<(num), " ");
    }

  }
  return 0;
}

3. Translating template instantiation

Let’s test a fold expression.

before.cpp

template<typename T, typename... Ts>auto average(T value, Ts... values) {
auto average(T value, Ts... values)
    auto n = (1. + sizeof...(Ts));
    return ((value / n) + ... + (values / n)); // (init op ... op pack)
}

int main() {
    std::cout << average(1.0, 2.0, 3.0);
    return 0;
}

after.cpp

template<typename T, typename ... Ts>auto average(T value, Ts... values){
auto average(T value, Ts... values)

  double n = (1.0 + static_cast<double>(sizeof...(Ts)));
  return ((value / n) + ... + (values / n));
}

#ifdef INSIGHTS_USE_TEMPLATE
template<>
double average<double, double, double>(double value, double __values1, double __values2)
{
  double n = (1.0 + static_cast<double>(2));
  return ((value / n) + (__values1 / n)) + (__values2 / n);
}
#endif


int main(){

  std::cout.operator<<(average(1.0, 2.0, 3.0));
  return 0;
}

4. Translating Lambda expression

before.cpp

int main() {
    auto add = [](int a, int b) { return a + b; };
    std::cout << add(3, 4) << std::endl;
    return 0;
}

after.cpp

int main(){


  class __lambda_5_16
  {
    public:
    inline /*constexpr */ int operator()(int a, int b) const    {

      return a + b;
    }

    using retType_5_16 = int (*)(int, int);
    inline constexpr operator retType_5_16 () const noexcept    {

      return __invoke;
    };

    private:
    static inline /*constexpr */ int __invoke(int a, int b)
    {
      return __lambda_5_16{}.operator()(a, b);
    }


  };

  __lambda_5_16 add = __lambda_5_16{};
  std::cout.operator<<(add.operator()(3, 4)).operator<<(std::endl);
  return 0;
}

5. Translating implicit conversion

In order to show implicit conversion, we need to enable Show all implicit casts in the dropdown list.

before.cpp

void func(double i) {}

int main() {
    func(3);
      unsigned int a = 1u;
      char buff[3] = {1, 2};
    return 0;
}

after.cpp

void func(double i){

}

int main(){

  func(static_cast<double>(3));
  unsigned int a = 1U;
  char buff[3] = {static_cast<char>(1), static_cast<char>(2), '\0'};
  return 0;
  /* buff // lifetime ends here */
  /* a // lifetime ends here */
}

5. Translating conversion operator

before.cpp

struct A {};

struct B {
    operator A() {return {};}
};

void func(const A& a) {}

int main() {
      B b;
    A a = b;

      func(B{});
    return 0;
}

after.cpp

struct A
{
};


struct B
{
  inline operator A ()  {

    return {};
  }

  // inline constexpr B() noexcept = default;
};


void func(const A & a){

}

int main(){

  B b;
  A a = b.operator A();
  func(static_cast<const A>(B{}.operator A()));
  return 0;
}

6. Translating auto-type deduction

before.cpp

#include <initializer_list>

auto a = 3;
const auto ca = a;
const auto& ra = a;

auto&& ref1 = a;
auto&& ref2 = ca;
auto&& ref3 = 3;

auto a1 = 3;
auto a2(3);
auto a3 = {1};
auto a4{3}; // narrowing check

int* p;
const int* cp;
const int* const ccp = cp;
auto b1 = p;
auto b2 = cp;
auto b3 = ccp;

after.cpp

#include <initializer_list>

int a = 3;
const int ca = a;
const int & ra = static_cast<const int>(a);

int & ref1 = a;
const int & ref2 = ca;
int && ref3 = 3;

int a1 = 3;
int a2 = 3;
std::initializer_list<int> a3 = std::initializer_list<int>{1};
int a4 = {3};

int * p;
const int * cp;
const int *const ccp = cp;
int * b1 = p;
const int * b2 = cp;
const int * b3 = ccp;

When using auto, the deduced type will:

• Preserve top-level const for references.
• Ignore top-level const for non-reference types.

Here, ccp is not a reference, so the top-level const (the const on the pointer itself) is ignored, while the low-level const (the const on the object being pointed to) is preserved.
